Whirlpool Refrigerator Ice Maker & Dispenser Repair in Skyland, Denver

Initial Diagnosis

After verifying the model number, we removed the ice bucket and began inspecting the ice maker and dispenser system. Testing confirmed that the ice maker had failed and required replacement.

While disassembling the freezer door components, we continued inspecting the dispenser system to ensure there were no additional problems that would prevent the refrigerator from operating properly after installing the new ice maker.

The Repair Process

Step 1 — Verify the Model

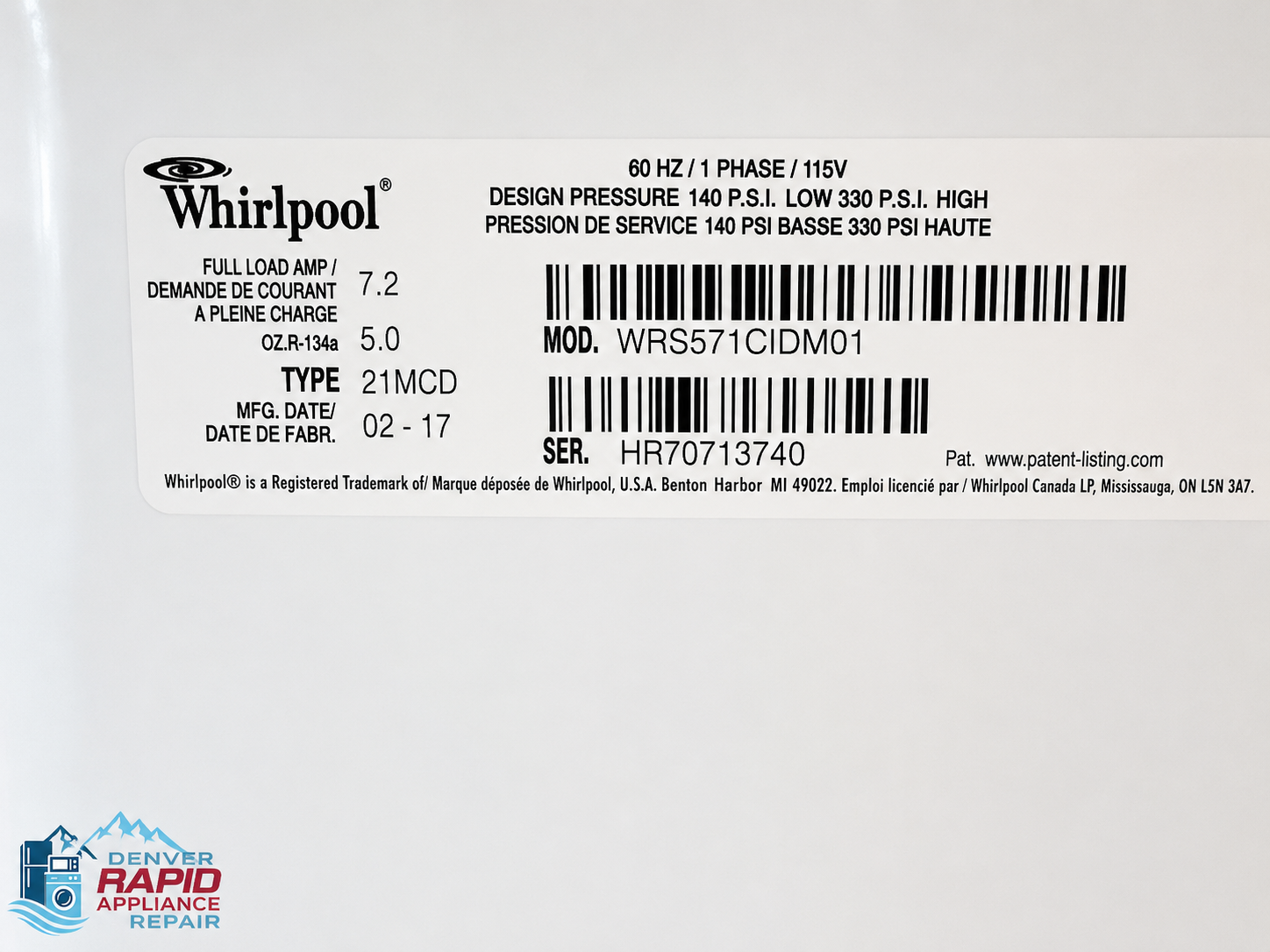

We confirmed the model number (WRS571CIDM01) before beginning diagnosis to ensure we had the correct parts and service information for this unit.

Step 2 — Remove the Ice Bucket

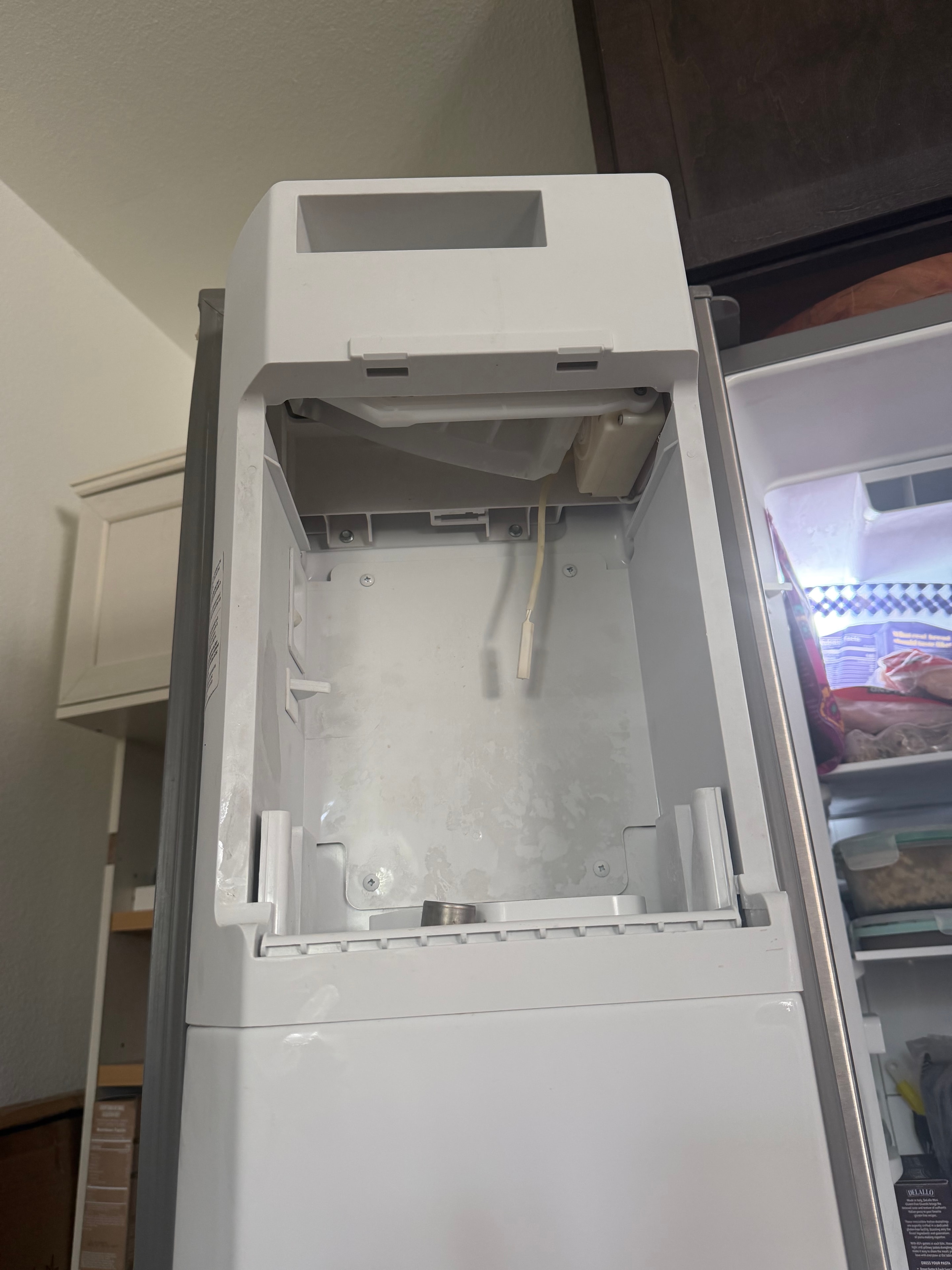

With the ice bucket removed, we had clear access to the ice maker assembly and could begin a thorough inspection of the entire ice production system.

Step 3 — Inspect the Ice Maker Assembly

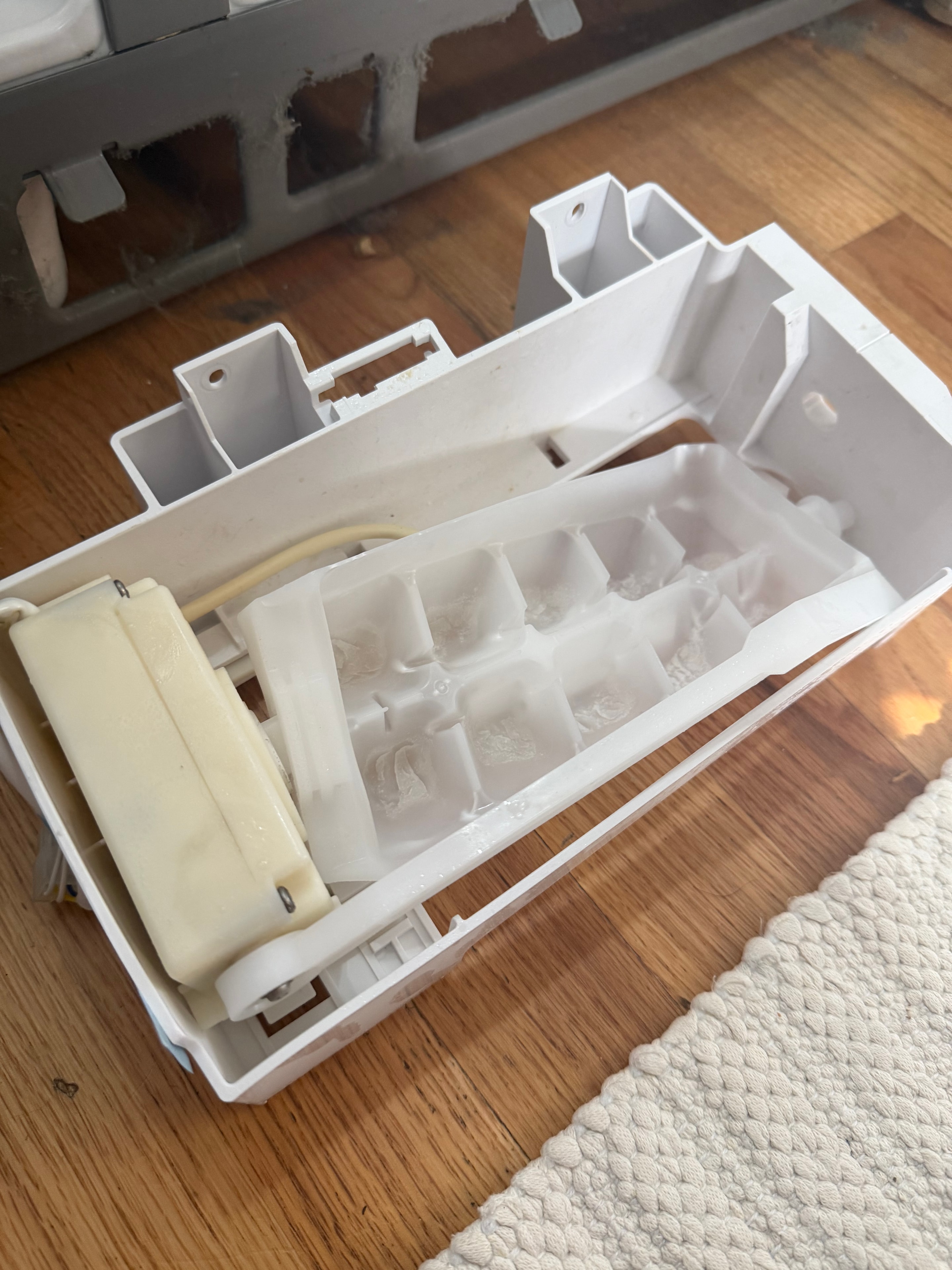

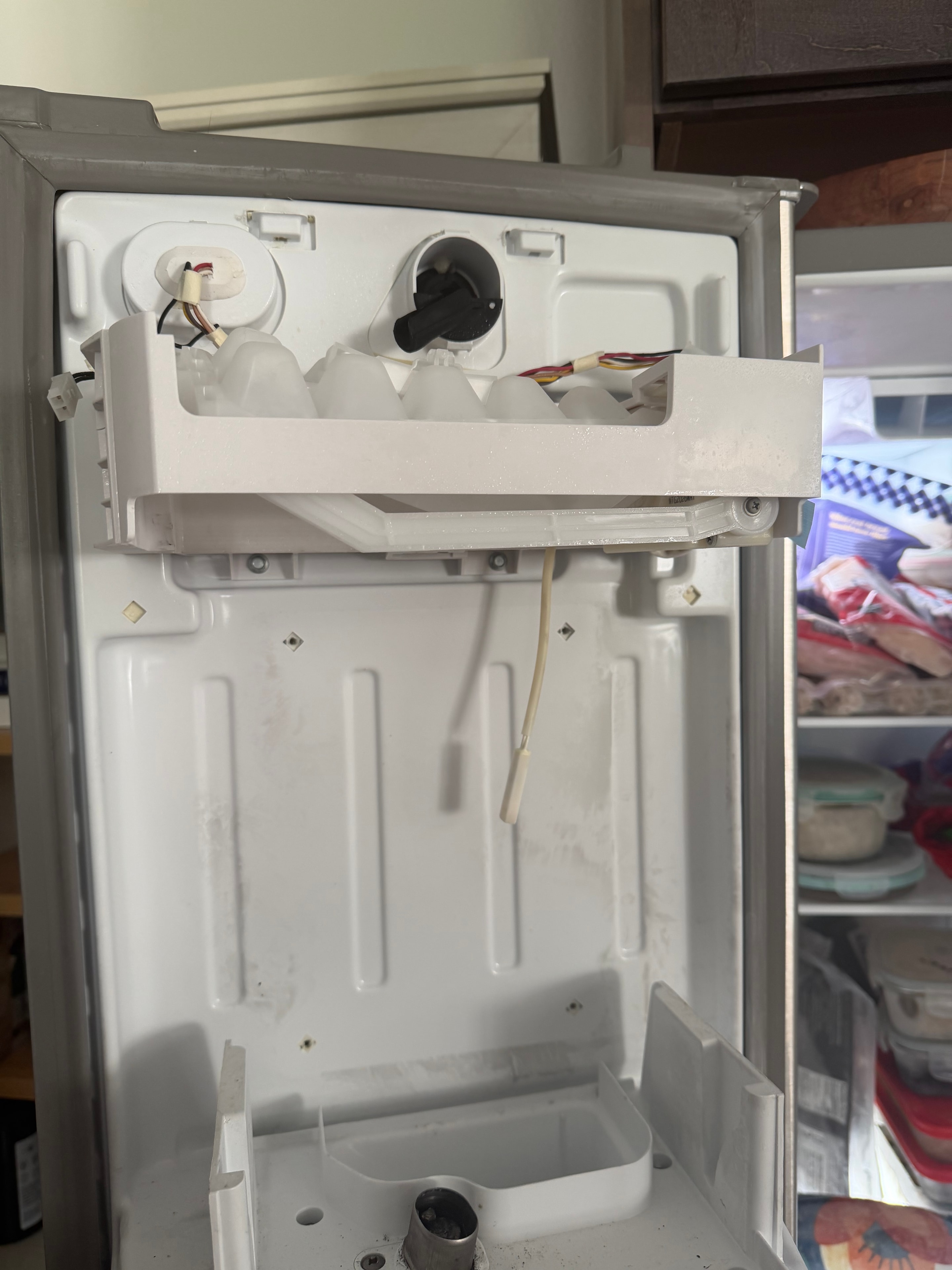

With the ice maker assembly fully exposed, testing confirmed the ice maker had failed and needed to be replaced. We also continued disassembling the dispenser components to check for any additional issues.

Step 4 — Replace the Ice Maker & Find Additional Problems

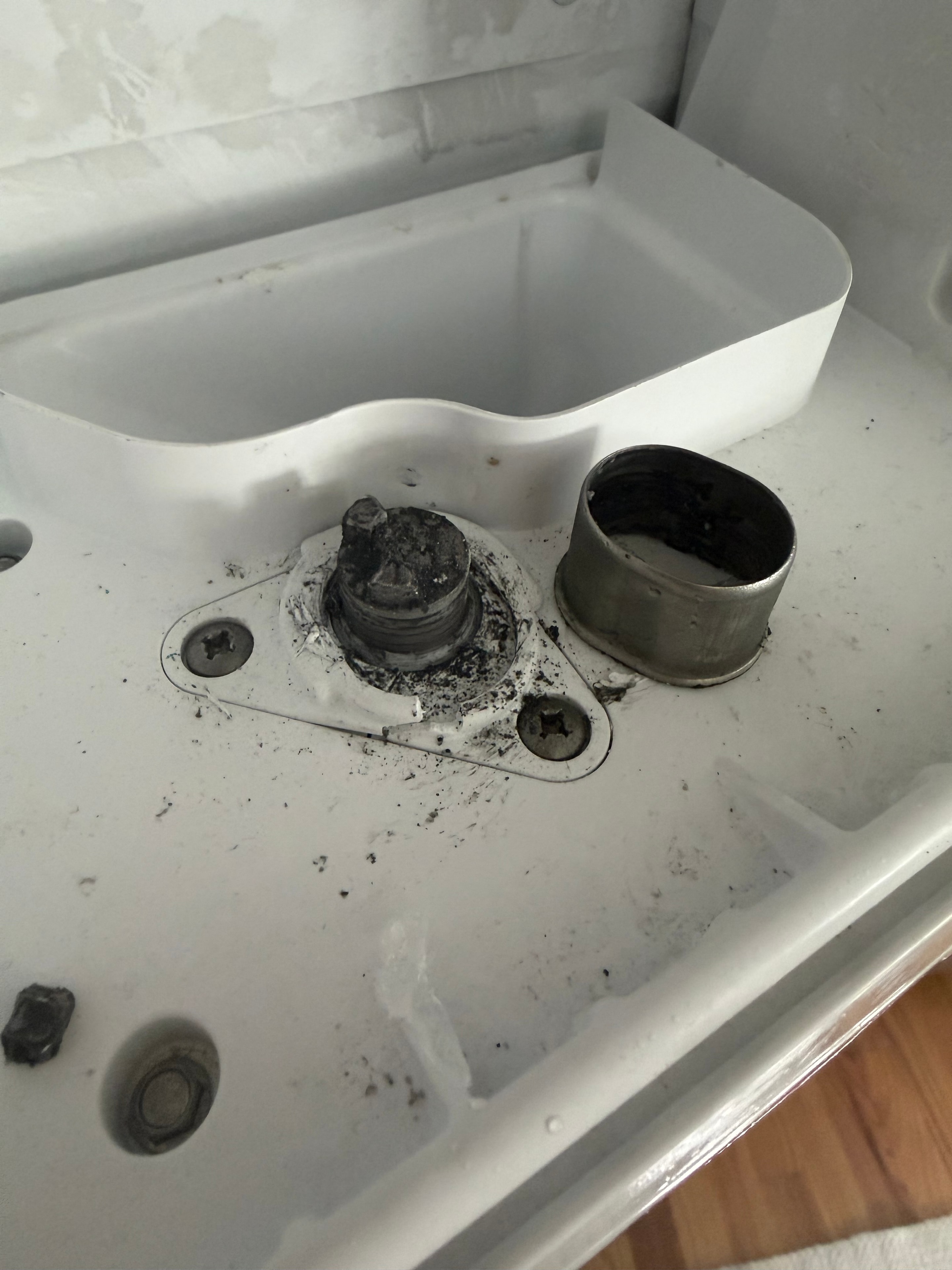

While removing the dispenser components, we discovered that the auger coupling had broken. The auger coupling transfers power from the dispenser motor to the ice bucket auger, allowing cubed ice to travel through the dispenser. When this part fails, the dispenser motor may operate normally but ice cannot be delivered. We also found wear in the ice chute assembly and replaced it at the same time.

Step 5 — Preventative Freezer Door Wiring Harness Repair

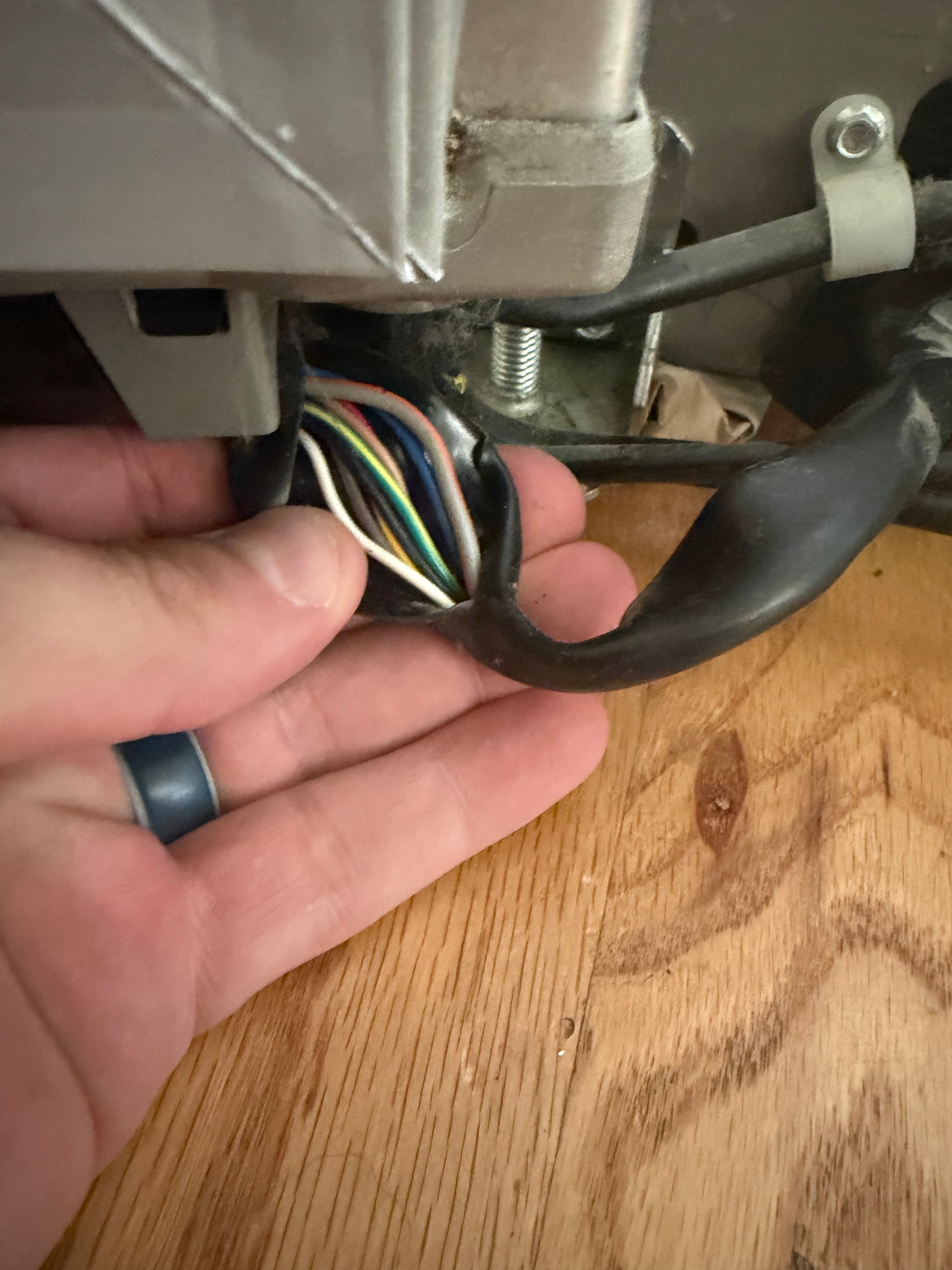

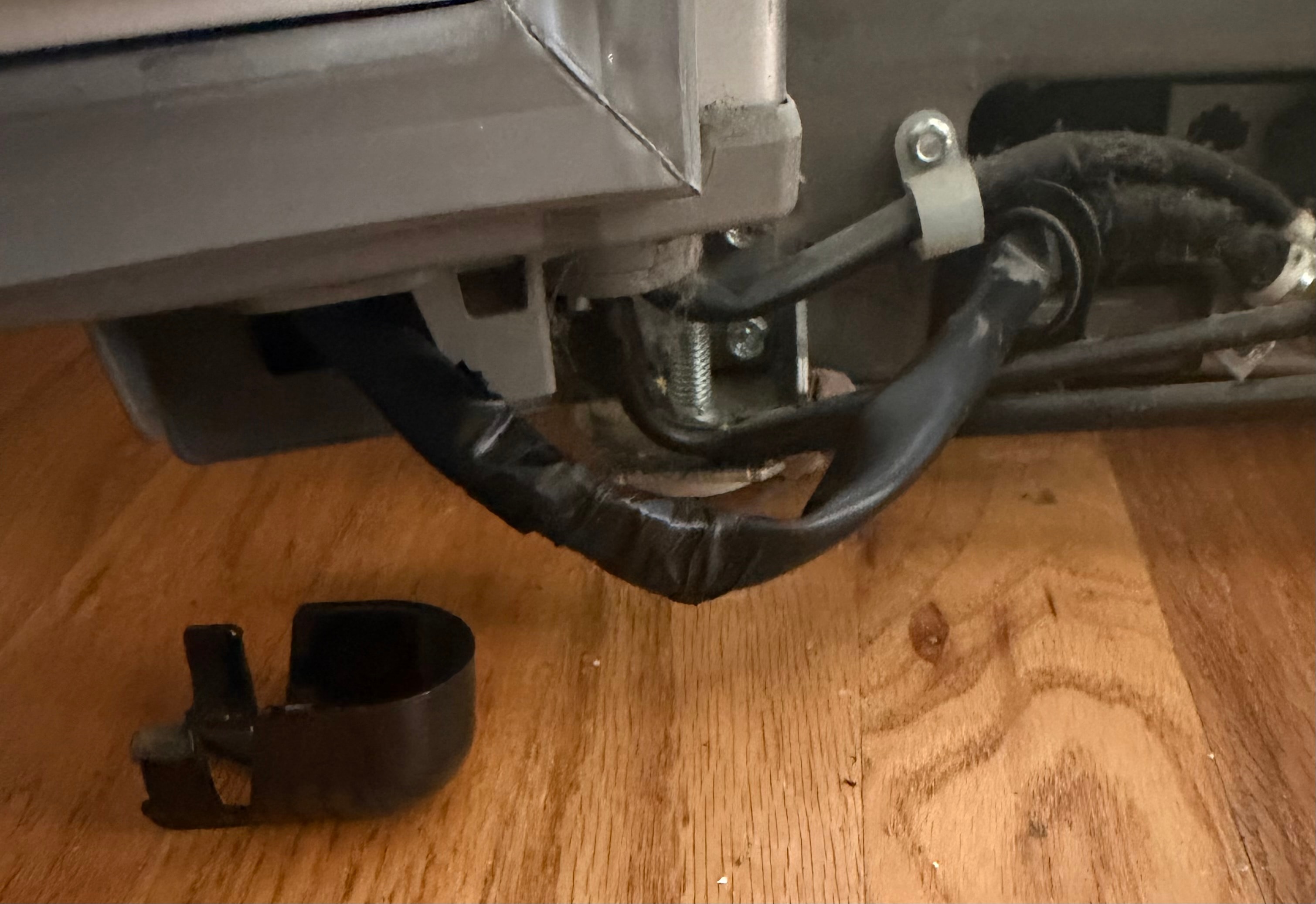

As part of every major ice system repair, we inspect the freezer door wiring harness located near the lower door hinge. Although the harness on this refrigerator was still functioning, it was beginning to show early signs of wear from years of opening and closing the freezer door. This is a common issue on Whirlpool side-by-side refrigerators and can eventually lead to failure of the ice maker, water dispenser, and freezer door electronics. We reinforced and protected the harness before the damage progressed further.

Step 6 — Reassemble and Test

After completing all repairs, we thoroughly tested the refrigerator to verify proper operation. The ice maker was cycling correctly and the dispenser was delivering ice without issue.

Final Results

The refrigerator was restored to full working condition in a single visit:

• New OEM-quality ice maker installed.
• New auger coupling installed.
• New ice chute assembly installed.
• Preventative freezer door wiring harness repair completed.
• Ice maker cycling properly.
• Ice dispenser operating correctly.
• Customer protected from a future wiring harness failure.

Why This Repair Matters

Many technicians would have replaced only the failed ice maker and considered the repair complete. At Denver Rapid Appliance Repair, we inspect the entire ice production and dispensing system while the refrigerator is disassembled. This allows us to identify worn components before they fail completely, saving our customers time, money, and the inconvenience of another breakdown.

Our goal is not just to fix today's problem — it is to help prevent tomorrow's.

Common Whirlpool Ice Maker Problems We Repair

• Ice maker stopped producing ice.
• Ice dispenser not dispensing or dispensing inconsistently.
• Broken auger coupling preventing ice delivery.
• Worn or cracked ice chute assembly.
• Freezer door wiring harness failure causing ice maker or dispenser issues.
• Water inlet valve failure stopping ice production.
