Whirlpool Dryer Not Responding — User Interface Control Board Replacement in Denver

Appliance: Whirlpool WED5620HW1

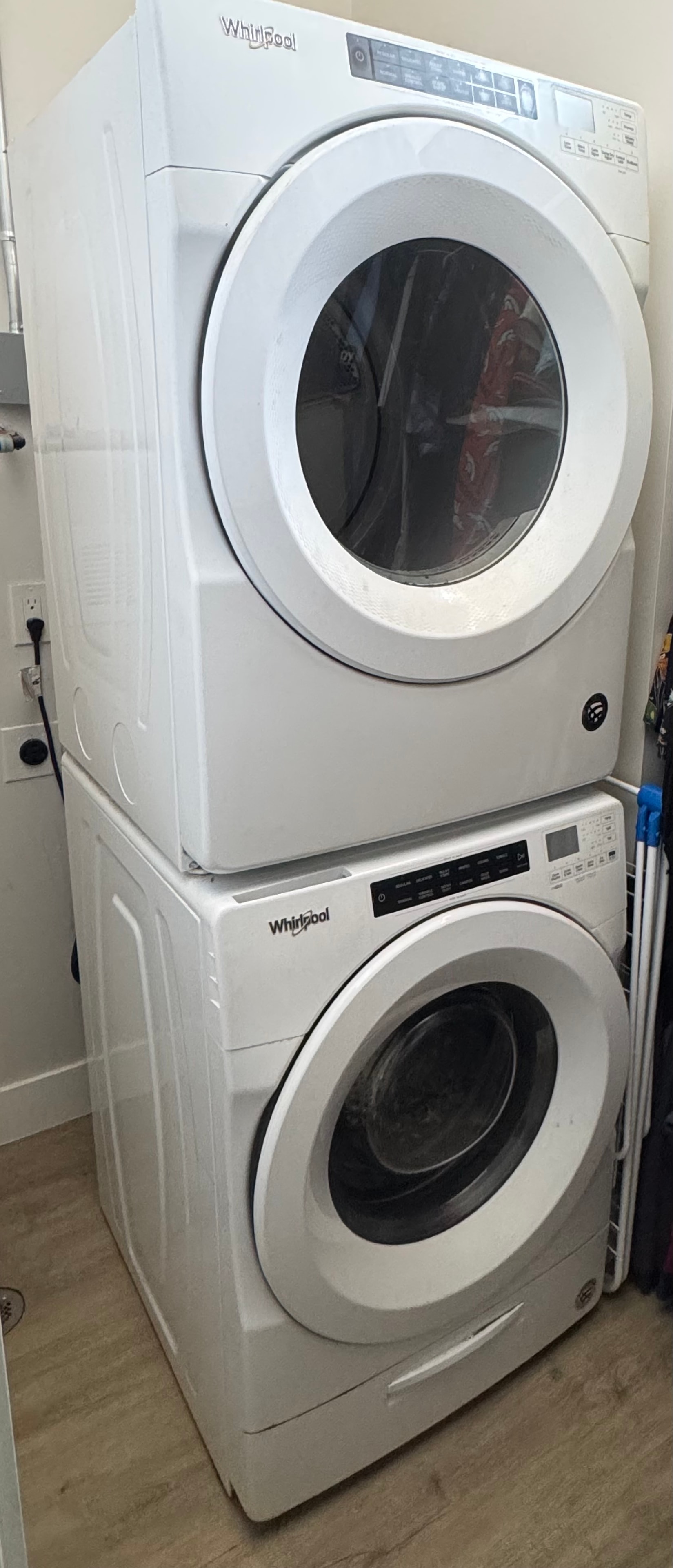

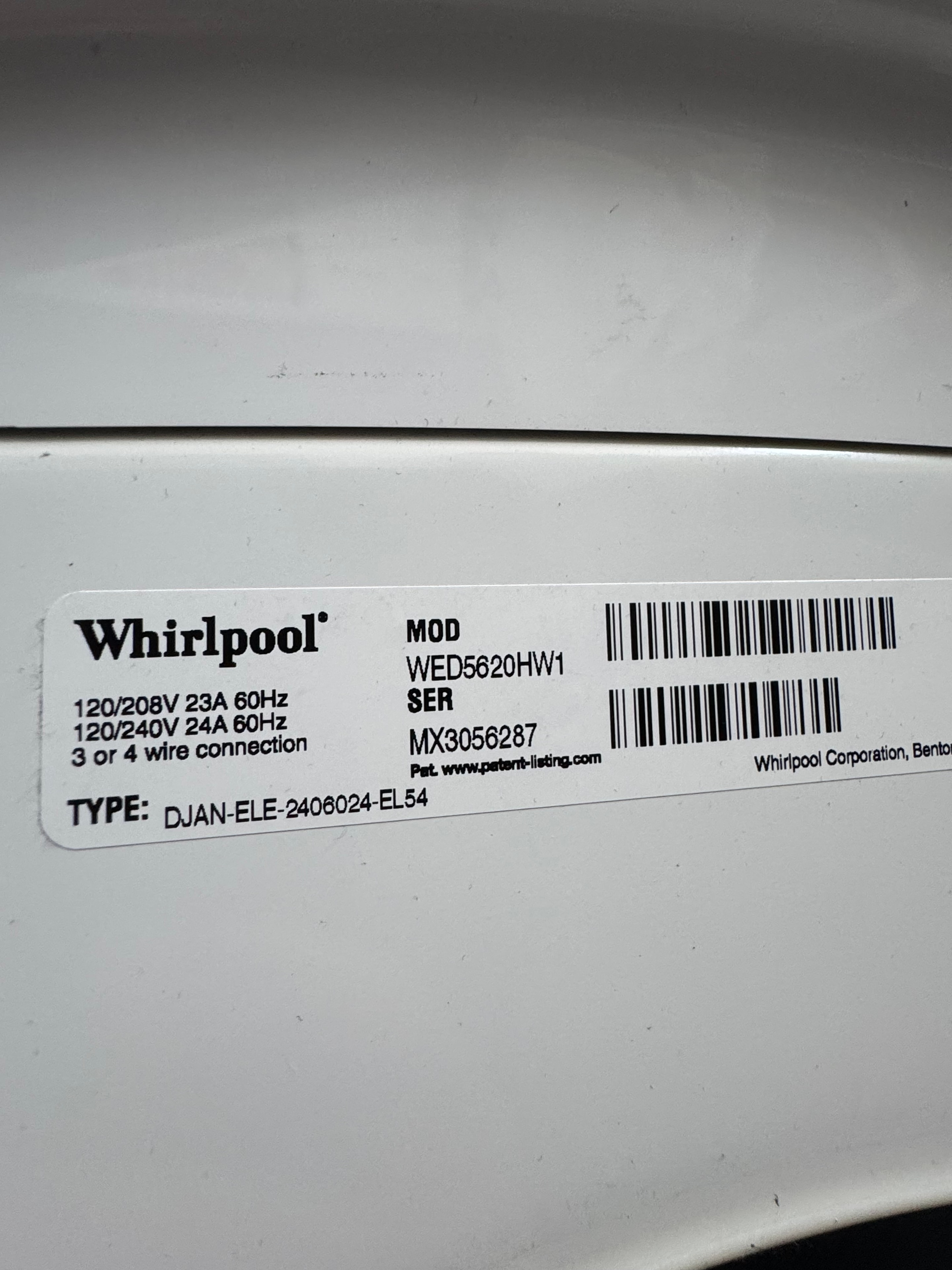

The dryer is a Whirlpool WED5620HW1 front-load electric dryer. The model and serial number label confirmed the appliance details and allowed us to identify the correct replacement user interface control board (Part #W11378949) before arriving at the customer's home.

What Causes a Dryer's Controls to Stop Responding?

A dryer that appears to have power but produces no response when buttons are pressed can have several different root causes. Before replacing any parts, proper testing is necessary to identify the actual failure. Common causes of unresponsive dryer controls include:

• Failed user interface control board — the board that processes button inputs has failed internally.
• Failed main control board — the primary control board is not communicating with the user interface.
• Power supply issue — the dryer is not receiving proper voltage at the control electronics.
• Wiring fault — a broken or disconnected wire between the user interface and main board.
• Control lock activated — some models have a control lock feature that disables all buttons.
• Failed door switch — in some configurations, a failed door switch prevents any response.

Voltage testing at the user interface is the key diagnostic step — it determines whether the board is receiving proper power or whether the problem lies upstream in the power supply or wiring.

Step 1 — Preparing Before the Appointment

Based on the symptoms described over the phone — dryer completely unresponsive, no reaction to any button input — Mike and Cody identified the user interface control board as a likely failure point for the WED5620HW1. To give the customer the best chance of a same-visit repair, they pre-ordered the Whirlpool user interface control board (Part #W11378949) and brought it to the appointment.

Pre-ordering a likely part does not mean replacing it without testing. The failure still needed to be confirmed through proper diagnosis before anything was installed.

Step 2 — DC Voltage Testing Confirms Failed User Interface Board

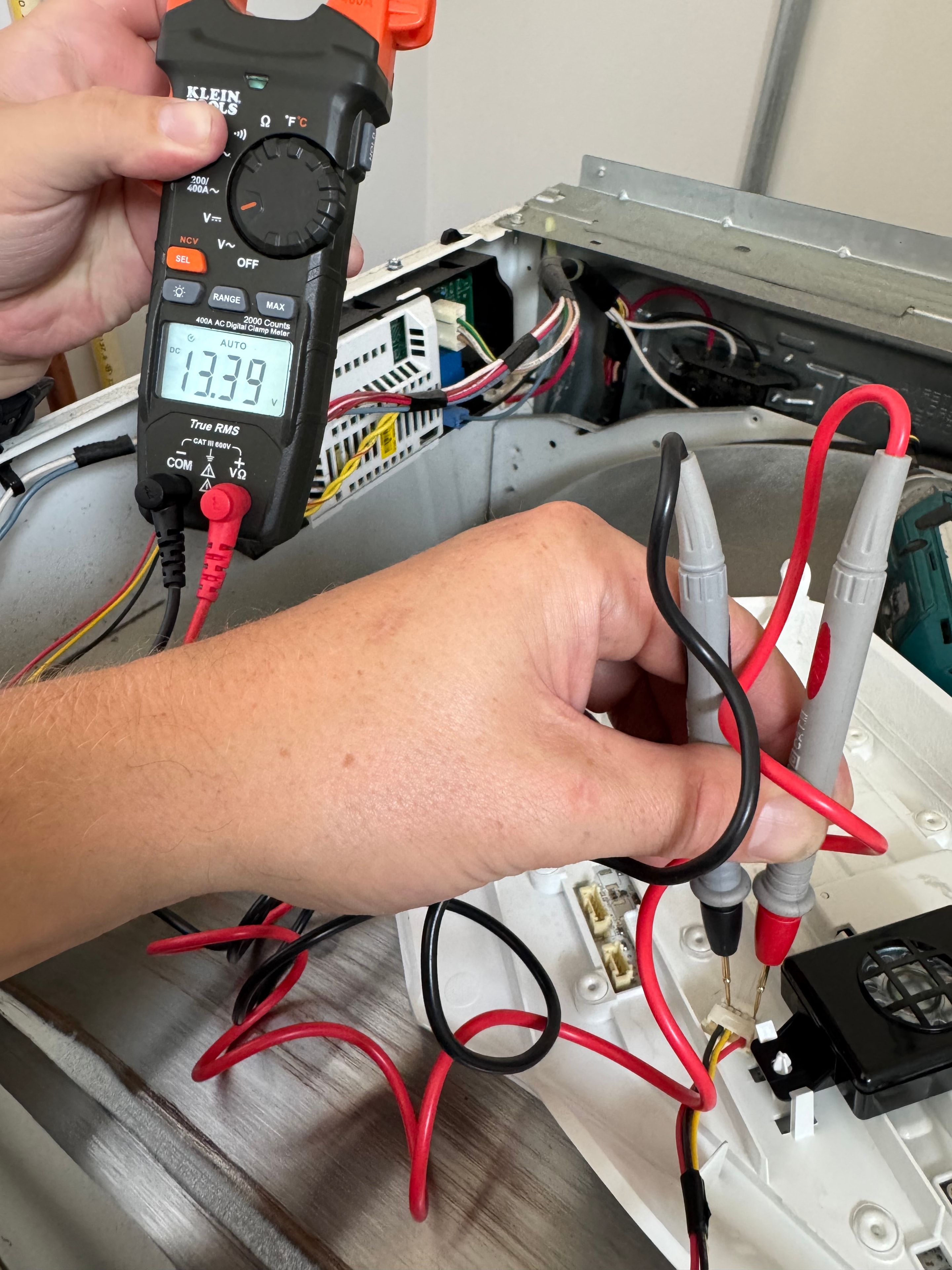

Mike and Cody disassembled the dryer to access the electronics and tested the DC voltage being supplied to the user interface. Testing confirmed that the proper DC voltage was reaching the interface — the power supply was not the problem. With correct voltage present at the board and the controls still completely unresponsive, they diagnosed the user interface control board itself as the failed component.

Step 3 — User Interface Control Board Replaced

With the diagnosis confirmed, Mike and Cody installed the pre-ordered Whirlpool user interface control board (Part #W11378949), reassembled the dryer, and performed operational testing. The controls responded normally immediately after the replacement, and the dryer started and completed a full cycle without issue.

Final Results

• DC voltage confirmed present at user interface — power supply ruled out as cause.
• Failed user interface control board diagnosed through voltage testing.
• OEM Whirlpool user interface board (Part #W11378949) installed on first visit.
• Controls responded normally immediately after replacement.
• Dryer started and completed full operational test.
• Repair completed in a single appointment — no return visit needed.
• Customer back up and running the same day.

The Advantage of Gathering Information Before the Appointment

This repair demonstrates the advantage of gathering detailed information when customers initially call. By using the symptoms and model number provided over the phone to anticipate which parts may be needed, we can sometimes arrive with the correct part — while still performing proper diagnostic testing before anything is replaced.

Pre-ordering a part is not the same as replacing it without diagnosis. In this case, voltage testing confirmed the board had failed before it was installed. If testing had pointed to a different cause — a wiring fault or main control board issue — the pre-ordered part would have been set aside and the actual problem addressed instead.

Common Whirlpool Dryer Problems We Repair

• Dryer won't start or controls unresponsive — user interface board, main control board, or wiring.
• Dryer not heating — heating element, thermal fuse, or cycling thermostat.
• Dryer shutting off mid-cycle — overheating, thermostat failure, or motor issue.
• Dryer won't start — door switch, thermal fuse, or start switch.
• Dryer taking multiple cycles to dry — restricted airflow or failing heating element.
• Dryer making loud noise — worn drum rollers, idler pulley, or drive belt.
• Dryer drum not spinning — broken drive belt or failed motor.
• Error codes displayed — diagnosed and repaired based on specific fault code.
