Whirlpool Dishwasher Display Dead — Main Control Board Replacement in City Park, Denver

Step 1 — Customer Complaint & Initial Assessment

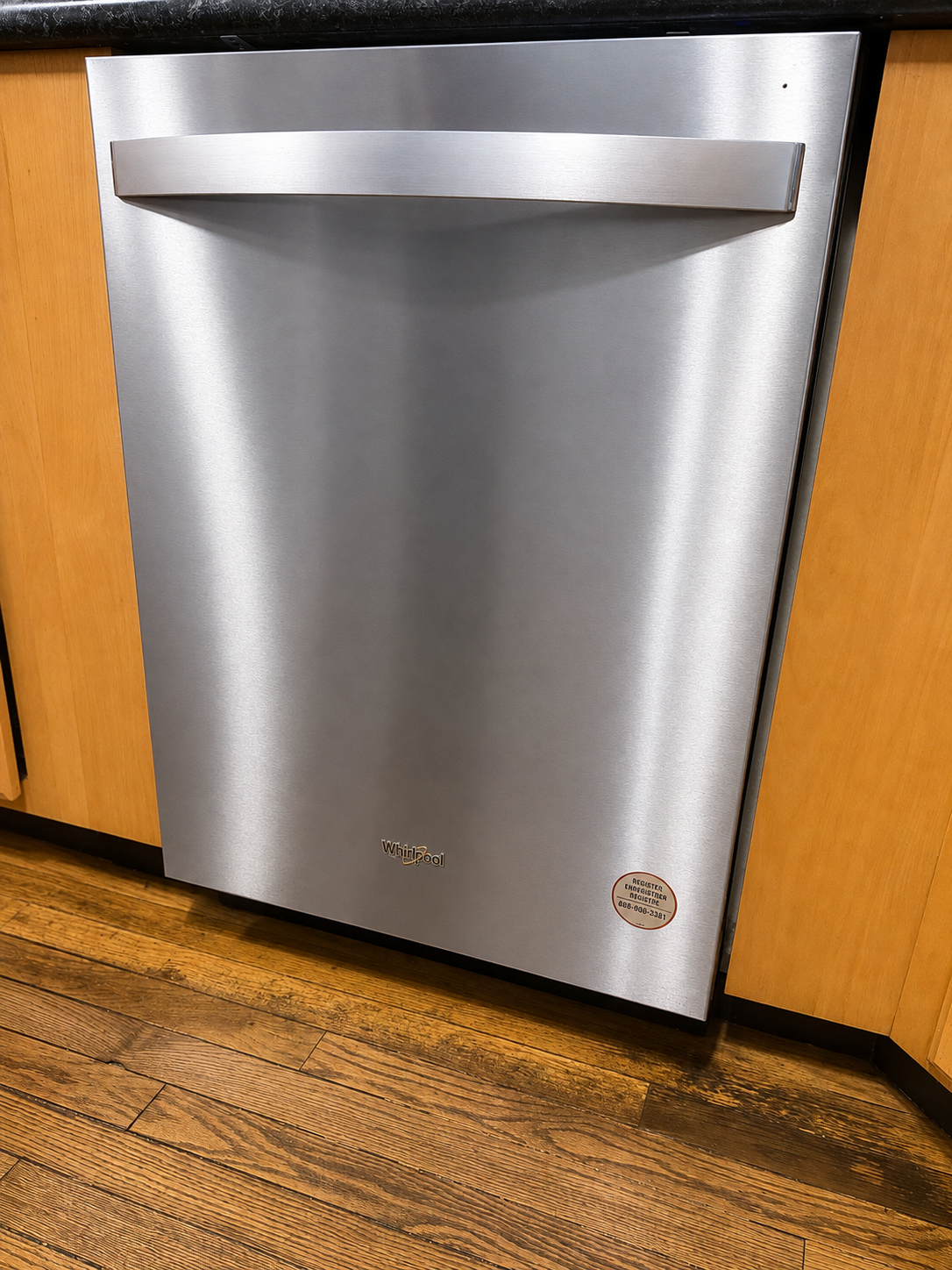

The homeowner reported that the dishwasher had simply stopped working — no warning, no error code, no partial response. The display was completely blank and pressing any button produced no reaction. The unit had been working normally the day before. Our first step was to confirm the appliance was receiving proper electrical power before proceeding with any internal diagnosis.

What Causes a Dishwasher Display to Go Completely Blank?

When a dishwasher display goes completely dark and the unit is unresponsive to all button presses, the cause is almost always electrical — either a power supply problem or a failed electronic component. The most common causes include:

• Tripped circuit breaker or blown fuse at the electrical panel.
• Failed thermal fuse inside the dishwasher (common on some models).
• Loose or disconnected wiring at the junction box.
• Failed main electronic control board.
• Failed user interface (control panel) board.
• Wiring harness damage between the control board and display.

Proper electrical testing is essential before replacing any electronic components. Replacing a control board without first confirming the power supply is present is a common and costly mistake — if the board is not receiving power, a new board will have the same result.

Step 2 — Electrical Testing Confirms Power Supply Is Good

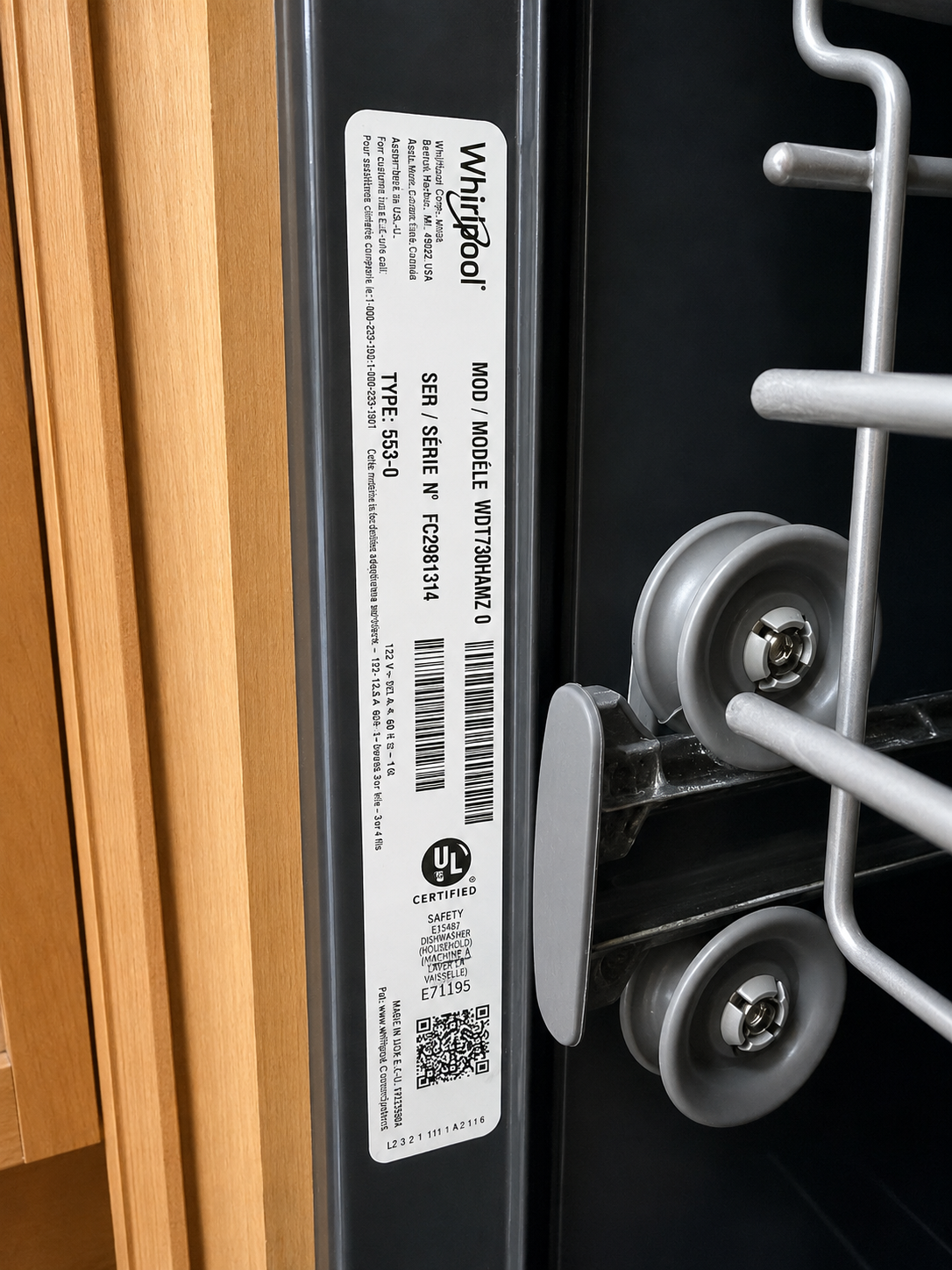

Our technician began by checking the circuit breaker — it was not tripped. Next, we accessed the dishwasher's junction box and measured the incoming voltage directly: a proper 120-volt supply was confirmed. We then traced that voltage through the wiring harness to the main control board and verified the correct voltage was reaching the board's input terminals. Power supply was ruled out as the cause. The model label was also confirmed to ensure the correct OEM replacement part would be ordered.

Step 3 — Main Control Board Diagnosed as Failed

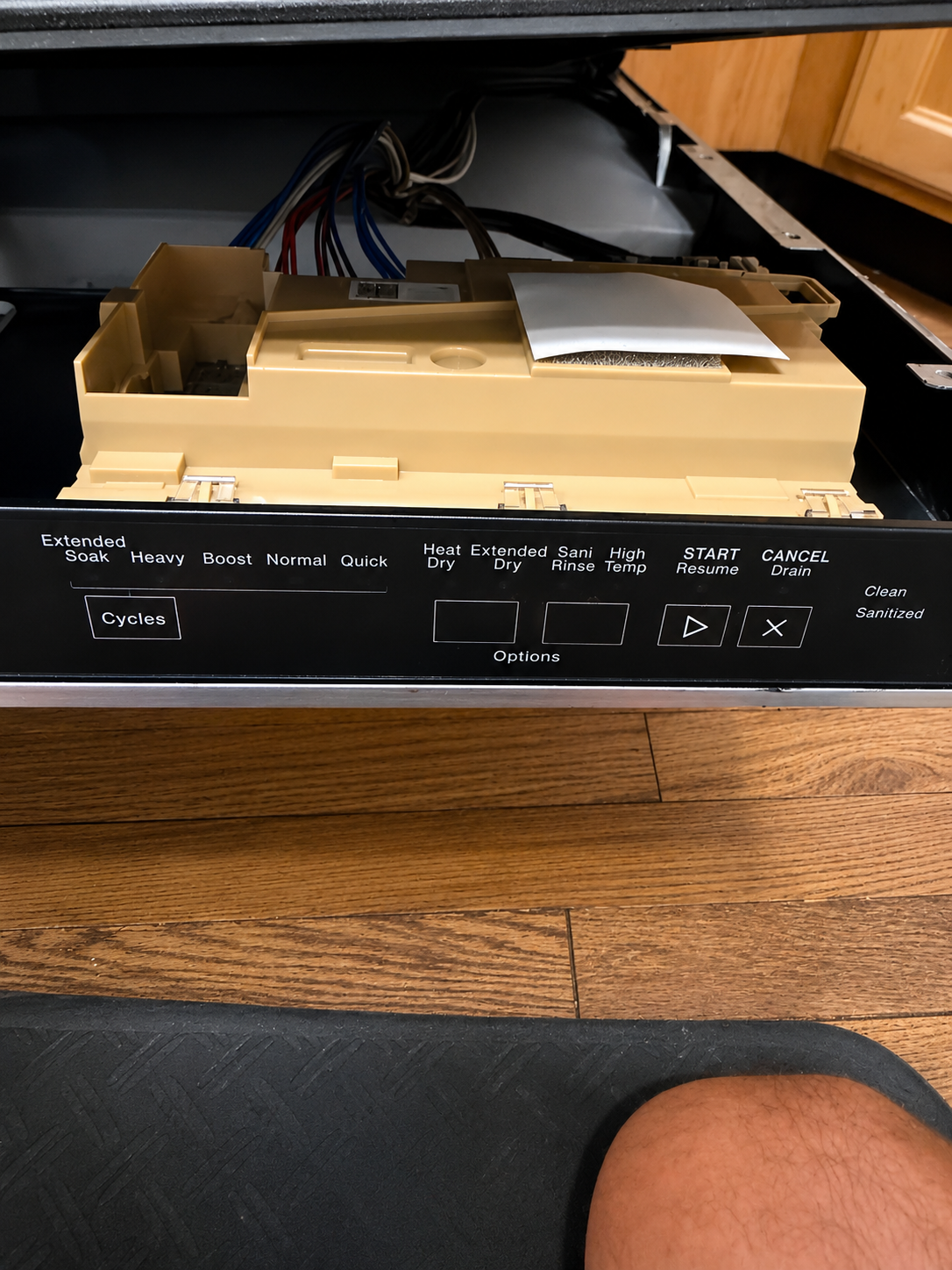

With proper power confirmed at the board's input and the user interface still completely inactive, the diagnosis was clear: the main electronic control board had failed internally. The door panel was opened to expose the board assembly for removal. No visible burn marks or obvious physical damage were present — internal component failure is common on control boards and often leaves no visible signs.

Step 4 — OEM Replacement Control Board Sourced & Installed

We sourced the correct OEM Whirlpool main control board (Part #W11637583) from a local Denver parts distributor the same day. After installing the new board, reconnecting all wiring harnesses, and restoring power, the dishwasher powered up immediately. The display returned to normal and all wash cycles — Normal, Heavy, Quick, Sani Rinse, and Heat Dry — operated correctly through a complete test run.

Final Results

• Incoming power supply confirmed at 120V — no wiring or breaker issues.
• Failed main control board (W11637583) identified and replaced with OEM part.
• Dishwasher powered up immediately after installation.
• Display returned to normal operation.
• All wash cycles tested and confirmed operating correctly.
• Repair completed same day — customer had a working dishwasher before end of visit.

Why Electrical Testing Comes Before Parts Replacement

A blank dishwasher display is one of the most commonly misdiagnosed appliance problems. Many homeowners — and even some technicians — jump straight to replacing the control board without first verifying the power supply. If the board is not receiving proper voltage, a new board will produce the exact same result: a blank display and no response.

In this case, confirming 120V at the junction box and tracing it to the board's input terminals took only a few minutes — but it was the step that made the diagnosis accurate and the repair successful on the first visit. Accurate diagnosis protects the customer from unnecessary parts costs and repeat service calls.

Common Whirlpool Dishwasher Problems We Repair

• Blank display — dishwasher completely unresponsive.
• Dishwasher not starting or completing cycles.
• Dishwasher not cleaning dishes properly.
• Dishwasher not draining.
• Dishwasher leaking water.
• Dishwasher not filling with water.
• Detergent pod not dissolving.
• Dishwasher making unusual noises during operation.
