Kenmore Dryer Not Starting — Thermal Fuse Replacement in Highlands, Denver

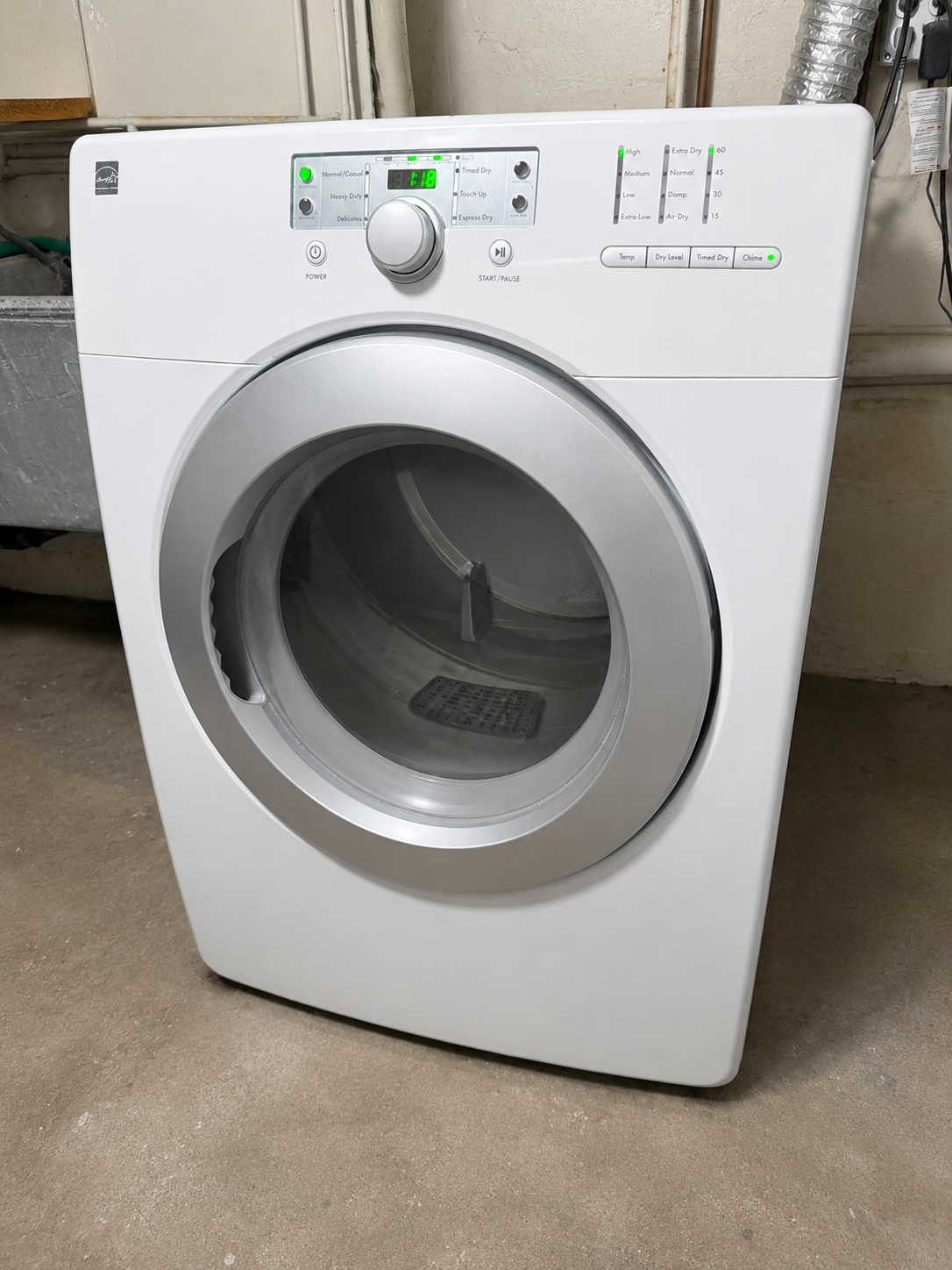

A customer in Denver's Highlands neighborhood contacted Denver Rapid Appliance Repair because their Kenmore dryer would not start. The control panel and display powered on normally — the green indicators lit up and the cycle selector responded — but pressing Start produced no response. The drum would not turn and no heat was produced.
After disassembling the dryer and testing the components in the start and safety circuits, our technician identified a failed thermal fuse on the blower housing as the root cause. We had the correct replacement part stocked on the service truck and completed the repair the same visit.
Repair at a Glance
- Appliance
- Kenmore dryer (402-99032010)
- Neighborhood
- Highlands, Denver
- Customer Complaint
- Display powered on; dryer would not start
- Root Cause
- Failed thermal fuse on blower housing
- Part Replaced
- Thermal fuse — Part #WP35001087
- Parts Source
- Stocked on service truck
- Additional Work
- Lint cleaned from dryer interior
- Outcome
- Dryer starting and operating normally
Kenmore 402-99032010 — Model Identification

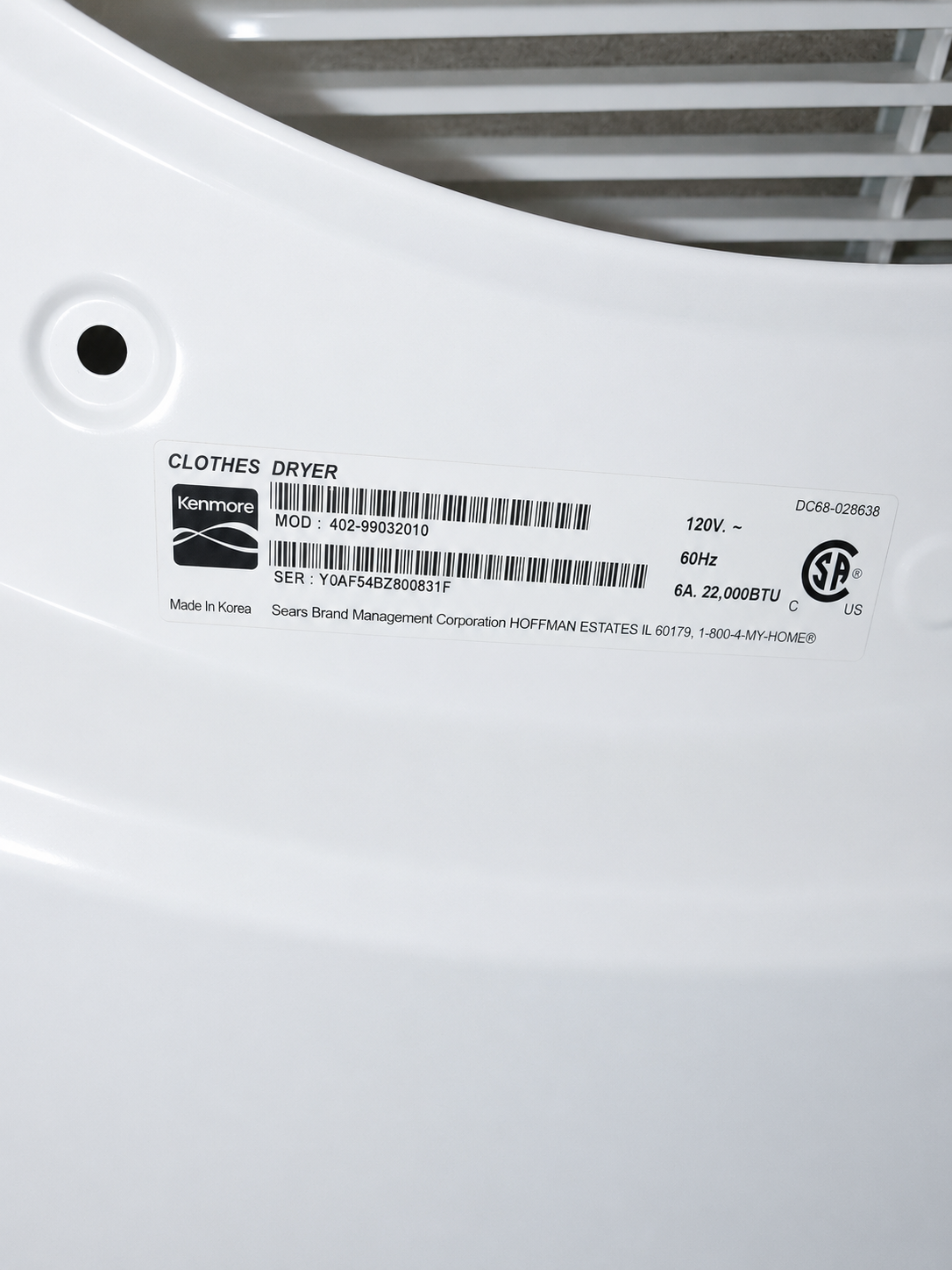

The model label confirmed this as a Kenmore 402-99032010 dryer — a gas dryer manufactured in Korea. Identifying the exact model number is an important first step: it determines which components are used in the safety circuit and ensures the correct replacement parts are sourced.
Why Would a Dryer Have Power but Not Start?
A dryer that displays power normally but refuses to start is one of the more confusing failures a homeowner encounters — the machine appears to be working, but nothing happens when you press Start. Several different components can cause this symptom, which is why proper diagnosis matters before any parts are replaced. Common causes include:
- Blown thermal fuse — a one-time safety device that cuts the motor circuit if the dryer overheats. The display can still power on even after the fuse has blown.
- Broken or failed door switch — the dryer cannot detect the door is closed and will not allow the motor to start.
- Failed start switch — the push-button or push-to-start mechanism that initiates the cycle.
- Broken belt switch — triggered when the drive belt breaks, preventing the motor from running.
- Failed drive motor — the motor receives power but will not run.
- Control board failure — the cycle control is not sending the start signal to the motor circuit.
On this Kenmore 402-99032010, the thermal fuse was the failed component. Because the thermal fuse is located in the motor circuit — not the display circuit — the control panel continued to power on and respond normally even after the fuse had blown.
Diagnosis — Failed Thermal Fuse on the Blower Housing

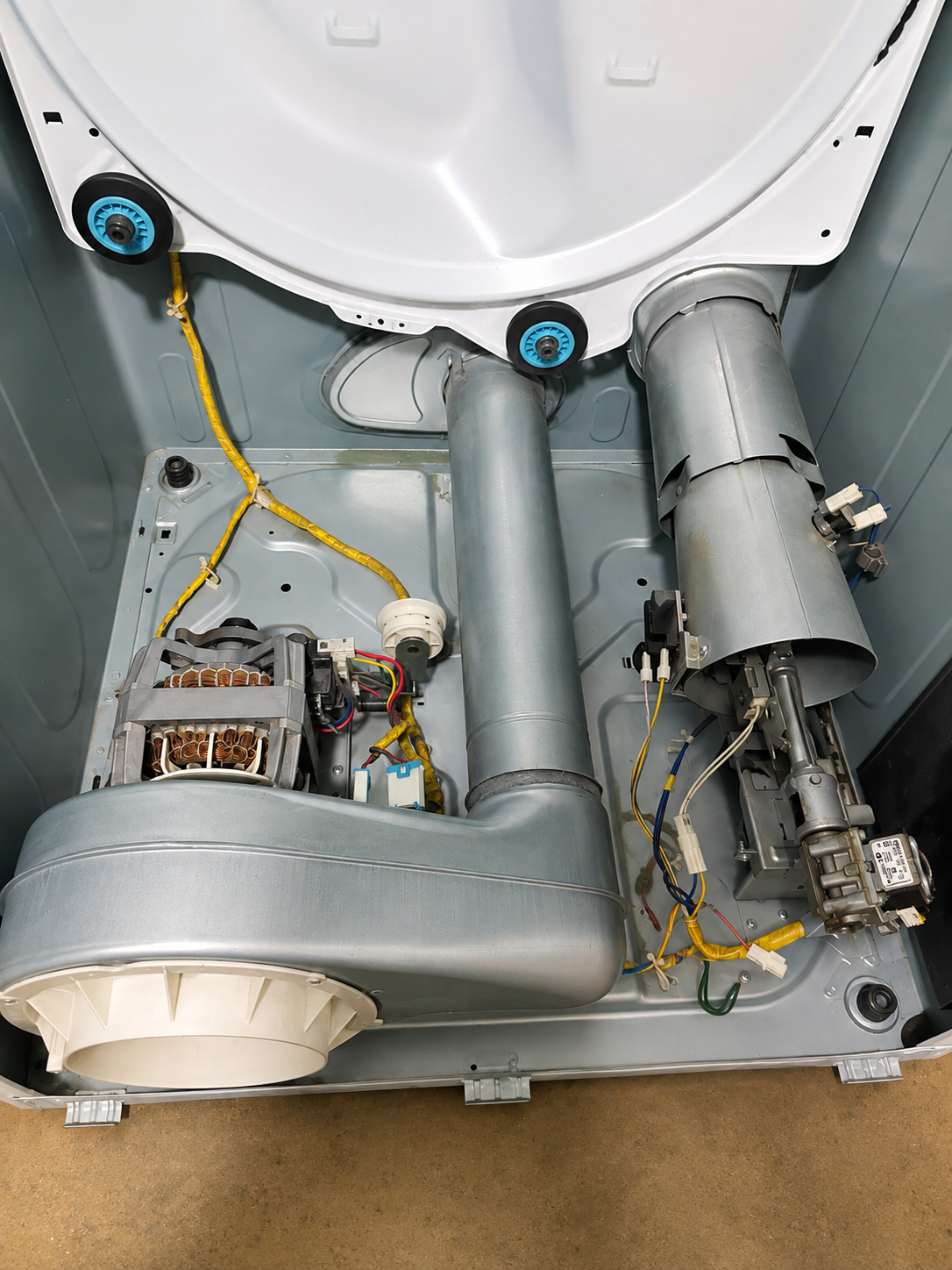

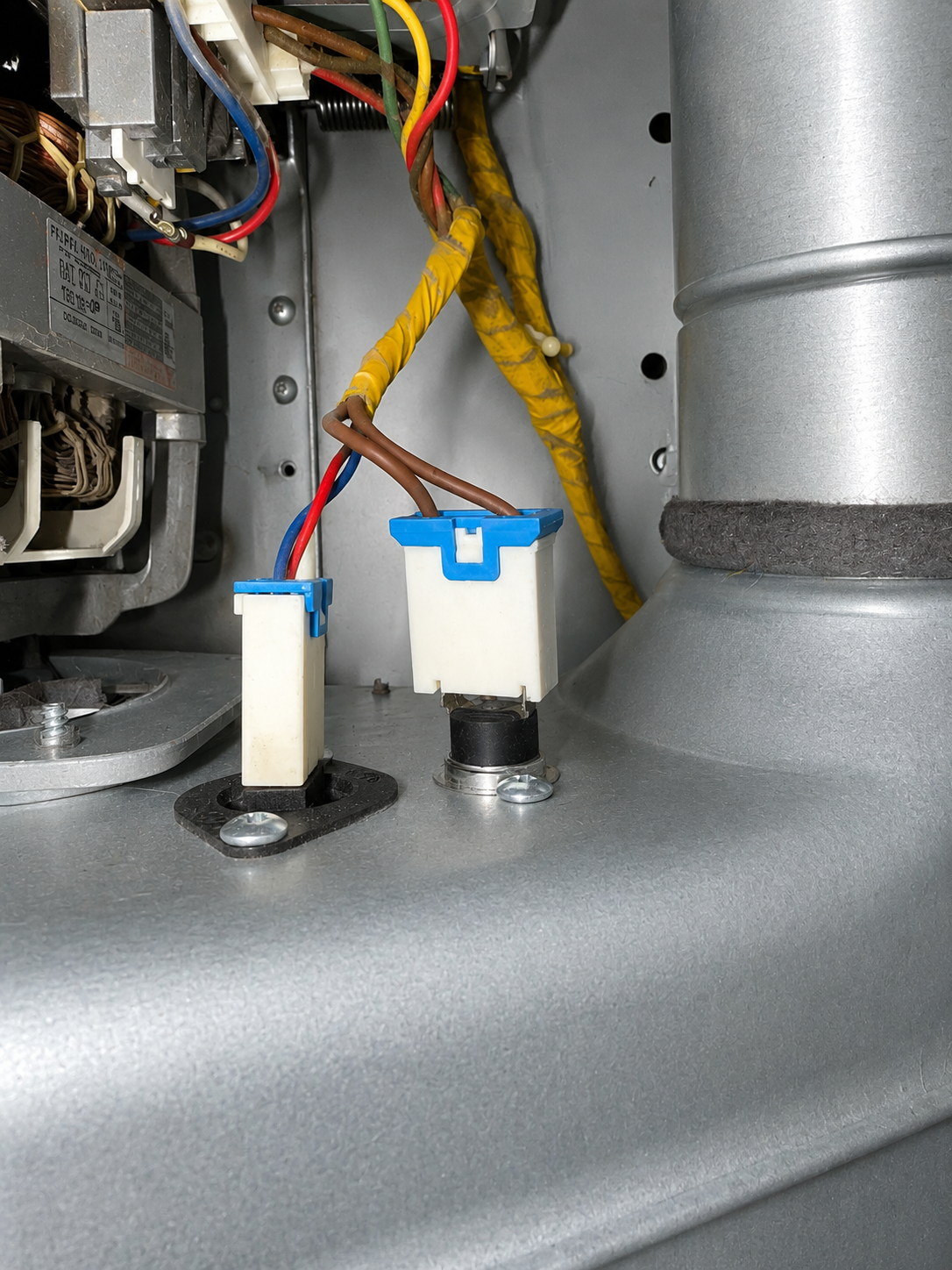

Our technician disassembled the dryer and tested the components in the start and safety circuits. Testing confirmed the thermal fuse located on the blower housing had failed — it was no longer passing continuity, which broke the motor circuit and prevented the dryer from starting.
The thermal fuse is a one-time safety device. Once it blows, it must be replaced — it cannot be reset. On this model, the fuse is mounted directly on the blower housing and is part of the circuit that powers the drive motor. A failed fuse in this location allows the display and controls to operate normally while preventing the motor from receiving power.
Repair — Thermal Fuse Replaced from Truck Stock
We keep common dryer safety components — including thermal fuses — stocked on our service trucks. Having the correct part on hand meant we could complete this repair without waiting for a parts order.
Our technician:
- Replaced the failed thermal fuse with a new WP35001087 from truck stock.
- Cleaned accumulated lint from inside the dryer cabinet during disassembly.
- Reassembled the dryer.
- Ran and tested the dryer to verify proper starting and operation.
After replacing the thermal fuse, the Kenmore dryer started and operated normally on the first test.
Final Results
- Failed thermal fuse on blower housing confirmed as root cause through circuit testing.
- New WP35001087 thermal fuse installed from truck stock — no parts wait required.
- Lint cleaned from dryer interior during disassembly.
- Dryer started immediately on first test after repair.
- Full drying cycle completed and confirmed normal.
- Repair completed the same visit.
Repair Complete — Dryer Starting and Operating Normally
Failed thermal fuse (WP35001087) on blower housing diagnosed through circuit testing. Replacement installed from truck stock. Dryer started immediately, full cycle confirmed normal. $99 service call applied toward the repair.
Proper Diagnosis Before Replacing Parts
A dryer that has power but won't start can have several different root causes. Replacing a thermal fuse on a dryer with a failed door switch — or replacing a door switch when the thermal fuse has blown — wastes time and money without fixing the actual problem.
Our technician tested the components in the start and safety circuits systematically before identifying the thermal fuse as the failed part. That diagnosis confirmed the correct repair and avoided unnecessary parts replacement.
Common Kenmore Dryer Problems We Repair
- Dryer won't start — thermal fuse, door switch, start switch, or belt switch.
- Dryer runs but produces no heat — heating element, thermal fuse, or gas igniter.
- Dryer takes multiple cycles to dry clothes — restricted airflow or failing heating component.
- Dryer making loud noise — worn drum support rollers, idler pulley, or drive belt.
- Dryer stops mid-cycle — overheating, failed cycling thermostat, or motor issue.
- Dryer drum not spinning — broken drive belt or failed motor.
Kenmore Dryer Repair in Highlands and Denver
If your Kenmore dryer has power but won't start, a failed thermal fuse, door switch, belt switch, motor, or control component may be responsible. Proper diagnosis is important before replacing parts.
Denver Rapid Appliance Repair provides Kenmore dryer repair throughout Denver, including the Highlands neighborhood and surrounding Denver communities.
